Water meters have become a necessity in today's world where we don't realize the importance of water conservation. As the water resources are depleting with passing time, it is necessary to install water meters in every society, industry, residential complexes, etc. Water meters are well known for accuracy and work under all flow range requirements to achieve satisfactory results. Water meters are budget-friendly and are very durable so it can serve a long life.
Types of water meters
-

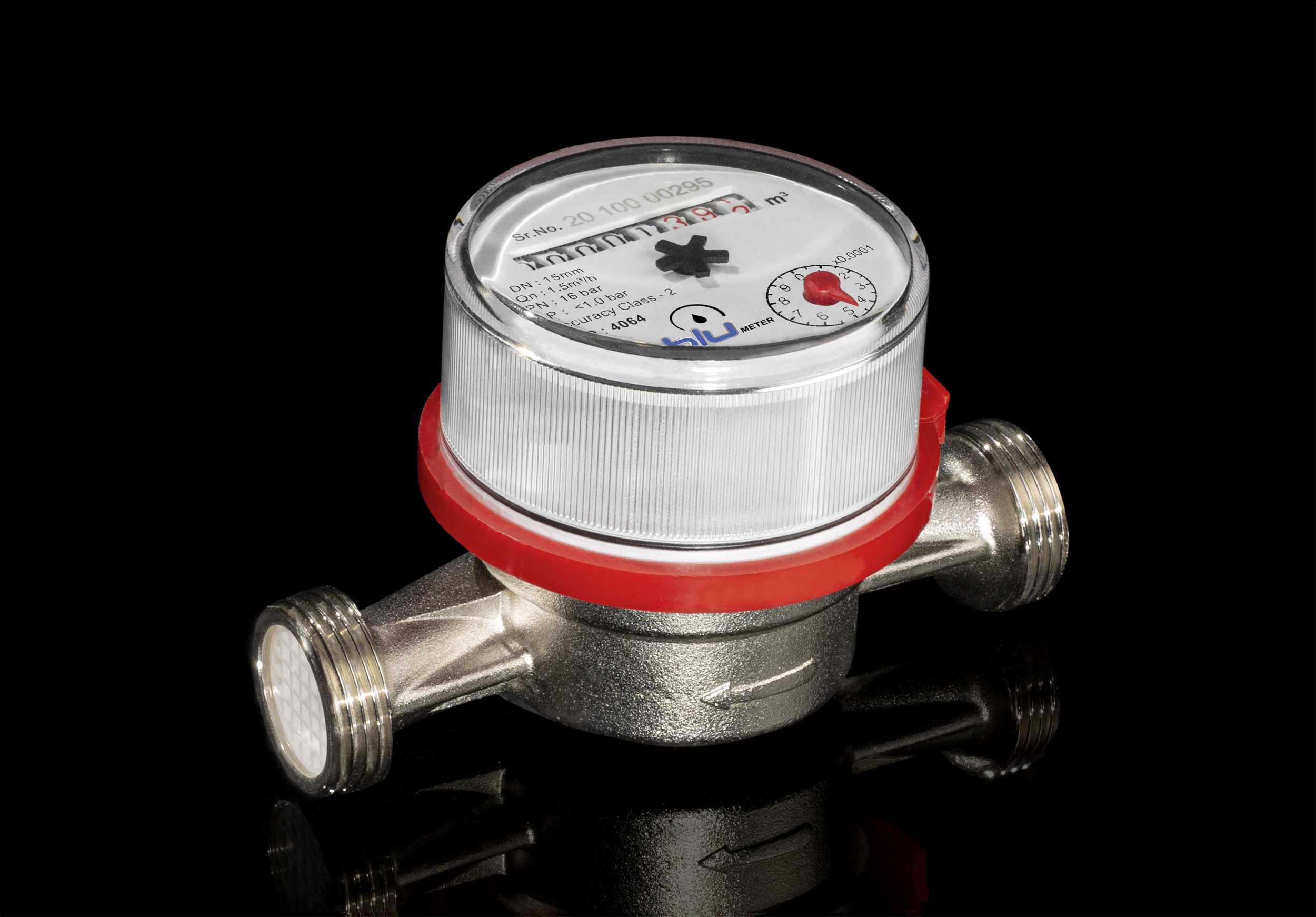

Single Jet Water Meter
In a single jet water meter, the principle is the same as in multi jet water meter, but the only difference is that it uses a single jet to rotate the turbine. You can go for
single jet water meter, as
they are well known for accuracy and desired output.
-

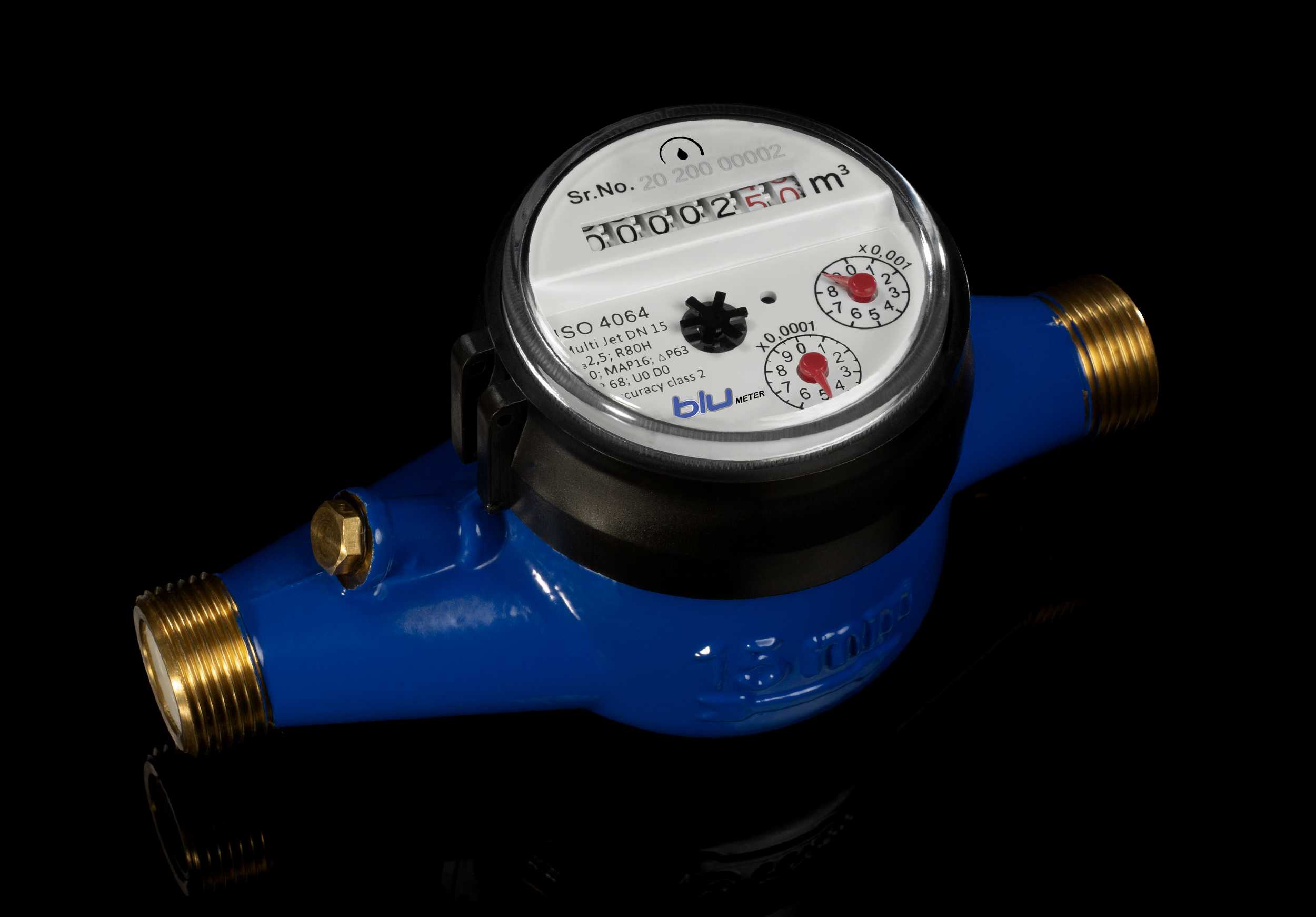

Multi Jet Water Meter
An internal chamber is surrounded by multiple ports to create a jet of water to rotate the turbine and produce pressure to show the exact reading in the register.
multi jet water meters are one of the renowned brands
among the multi jet water meters available in the
market.
Specifications
Hot Forged Brass Body / Brass Casted Body
Dual pivot system for balanced impeller rotation under any flow
rate and installation conditions. Pivots are made of
non-magnetic AISI 316 stainless steel protection against
external magnetic fields.
Internal adjustment device
Internal components are made of an-hygroscopic, anti-scaling and hard-wearing resistant plastic materials, hydraulic tests are carried out at three flow rates Q1, Q2, and Q3, on 100% of the production.
Our testing benches comply with ISO-4064 standard
A non-return valve fitted into the coupling comes as an option, direct reading on 8 or 7 numeric rolls, 360° rotation dry dial, maintenance-free meters.
Features
- Long service life
- Tamper proof
- Low maintenance
- Easy to install and use
- Durable
Applications
- Residential complexes
- Industries
- Housing societies
- Schools
- Hospitals
solutions provides a wide range of monitoring products and one of our leading products is multi jet water meter. Developed with the highest industrial standards in consideration, multi jet water meters are perfect for achieving accurate results. These multi jet meters are highly sensitive to low flow rates and its accurate over the entire flow range. With a low loss of head, multi jet water meter allows water to reach upper levels as well. These water meters are sealed to avoid tampering, leakage and remain completely dry. The central disc in the multi jet water meter turns at the same speed as the turbine and that enables easy automatic calibration. multi-jet water meters are equipped with an adjustable orientation register that has two pointer dial for accurate readings as low as 0.02 L.
